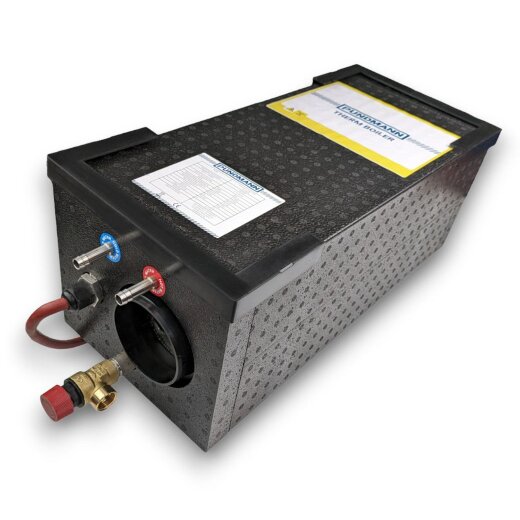

Pundmann Therm Boiler AIR 12V-200W 9L for parking heaters

Pundmann Therm Boiler AIR 12V-200W 9L for parking heaters

With a capacity of 9 litres, a heating power of 200W and a 12V connection, the Pundmann Therm Boiler is suitable for use in recreational vehicles such as campervans and yachts. It can be used to heat water using a parking heating system, allowing hot water to be used even when the vehicle is stationary.
Boiler dimensions: 228/200/517 mm

Production item number: 75564

485,00 €

, plus

Goods ordered. 38 expected on 28.11.2024.
Delivery time: 8 - 10 Workdays (PL - int. shipments may differ)

SKU: 77554VAR#3
GTIN: 4054354110461
Category: Boilers AIR for air heaters

Description
PDF (1)

Using a boiler in recreational vehicles, the most common use is with a parking heating system, which allows the water temperature in the boiler to be maintained even when the vehicle is stopped. In this way, it is possible to have hot water available for an extended period of time without having to use the vehicle's engine or other power sources. With a capacity of 9 litres and a heating power of 200W with heater and 12V connection, the Pundmann boiler is the ideal solution for people travelling in a campervan, yacht or other recreational vehicle who want to have hot water available at all times.

PUNDMANN THERM

For heating domestic water in coaches, yachts, caravans, food trucks, etc.
Hot water even where there is no electrical infrastructure.
Heats the water with hot air generated from the parking heater or a 200W electric heater.
Inexpensive alternative to combined appliances.
Made of high-quality stainless steel in accordance with the drinking water standard.

TECHNICAL SPECIFICATIONS

Boiler capacity: 9,9 L
Suitable for 2kW 4kW parking heater (Autoterm 2D, 4D or other alternative)
Boiler supply voltage: 12V
Electric heater power: 200W
Operating pressure: 2.3 bar
Heating time: approx. 80 minutes
Water connection: fi 10 mm
Safety valve setting: 3.0 bar
Hot air connection: 90 mm fin (optional 60 mm fin adapter to be ordered separately)
DIMENSIONS: width x length x height: 228 x 517 x 200 mm

Voltage (V):	12
Boiler type:	AIR
Dimensions:	228/200/517 mm
Tank capacity (l):	9
Item weight:	10,00 kg
Dimensions ( Length × Width × Height ):	52,00 × 20,00 × 22,80 cm
